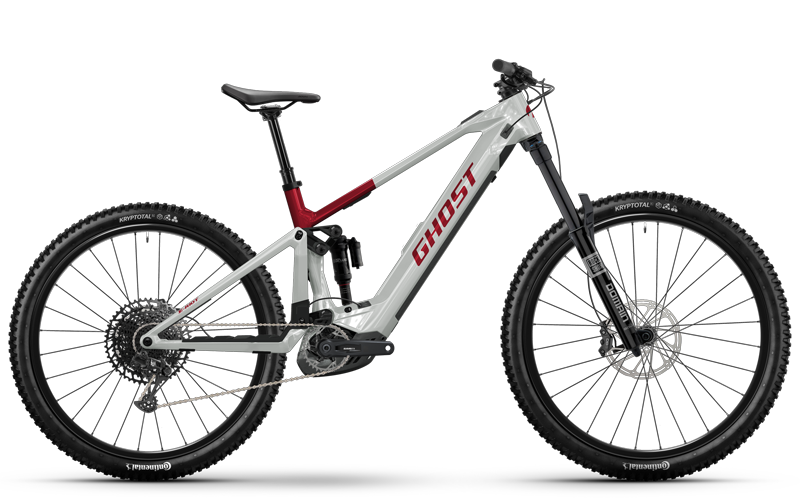

Ghost E-Riot CF ADVANCED – Modell 2025 – grey red
6.999,00€ inkl. 19% MwSt.
Lieferzeit 5-7 Werktage
Abholung vor Ort in unserem Store.
Du hast Fragen zu diesem Produkt?
Unser Service-Team steht dir
unter 02972-9742960 gerne zur Verfügung!
Spezifikationen
Bike Geometry
- Bottom bracket drop [mm]: 10 mm
- Chain stay length [mm]: 445 mm
- Fork total length [mm]: 0 mm
- Head tube angle: 64 degrees
- Head tube length [mm]: 115 mm
- Reach [mm]: 490 mm
- Stack [mm]: 640 mm
- Stand over height [mm]: 760.3 mm
- Seat tube angle: 77.5 degrees
- Seat tube length [mm]: 424 mm
- Top tube length [mm]: 632 mm
- Wheelbase [mm]: 1282 mm
Brake system
- Brake Front Mount: Post Mount
- Brake Rear Mount: Post Mount
- Brake Front Description: Sram, Hydraulische Scheibenbremse, DB8 Stealth, 220 mm
- Brake Rear Description: Sram, Hydraulische Scheibenbremse, DB8 Stealth, 200 mm
- BrakeLever Description: Sram, DB8 Stealth-BL
- Brake Rotor Description: Sram, Centerline 220 mm, Centerlock
Drivetrain
- Cassette Teeth: 11-50T
- Crankset Teeth: 34T
- Crankset Type: single
- Number Of Gears: 12
- Pedal Inclusive: Nein
- Cassette Description: Sram, PG-1230 Eagle, HG
- Chain Description: Sram, NX Eagle 12s
- Chain Guide Description: MRP, 1x
- Crankset Description: Sram, S1000 Eagle ISIS
- Derailleur Hanger Description: Sram, UDH
- Derailleur Rear Description: Sram, NX Eagle 12s
- Gear Description: Sram, Derailleur
- Shifter Right Description: Sram, Triggershift, NX Eagle Single Click
E-bike components
- Battery Capacity: 800 Wh
- Battery Location: Powertube
- Motor Torque [nm]: 85 Nm
- Motor Location: Center
- Numer Of Level Assistance: 0
- Battery Description: Bosch, InTube 800 Wh
- Charger Description: Bosch, Charger 4A
- Display Description: Bosch, Kiox 300 + Mini Remote
- Motor Description: Bosch, Performance Line CX
Frame and more
- Framesize Convection: L
- Max loadable weight (KG): 150 kg
- Front Fork Type: Suspension
- Suspension Type: Fully
- Travel Front: 170 mm
- Travel Rear: 160 mm
- Front Fork Description: Rockshox, Domain Gold Isolator RC3 Boost 170 mm
- Frame Description: E-RIOT CF, Carbon, Uni
- Shock Description: Rockshox, Super Deluxe Select+ RT 160 mm
Handlebar and Saddle
- Handlebar Diameter: 31.8 mm
- Handlebar Material: Aluminium
- Handlebar Rise: 19
- Handlebar Width: 800 mm
- Seatpost Material: Aluminium
- Seatpost Travel (mm): 200 mm
- Stem Length: 40 mm
- Handgrip Description: XLC, GR-S34, Death Grip, black
- Handlebar Description: XLC, Flat bar, MTB Dia. 31.8 mm, Rise: 19 mm, backsweep 9°
- Headset Description: Acros, Blocklock 120°
- Saddle Description: Fizik, Terra Aidon X5 145 mm
- Seatpost Description: Limotec, Dropperpost, Alpha A1, Dia. 34.9 mm, Travel: 200 mm
- Stem Description: XLC, Dia. 31.8 mm, L: 40 mm
Wheels and wheel components
- Hub Front Description: Shimano, HB-TC500-15-B 15×110 mm
- Hub Rear Description: Shimano, FH-TC500-HM-B 12×148 mm
- Rim Description: WTB, ST Tough TCS 2.0 29″ Pinned 32H Vinyl
- Rim Rear Description: WTB, ST Tough TCS 2.0 27.5″ Pinned 32H Vinyl
- Spoke Description: DT Swiss, FACTORY 2.0
- Tyre Description: Continental, Kryptotal Fr Enduro Super Soft, 60-622
- Tyre Rear Description: Continental, Kryptotal Re Downhill Soft
- Wheelsize Description: 29, 27.5
* Die vorstehende Abbildung ist beispielhaft. Der Hersteller behält sich vor, solange das Fahrrad nicht in Art, Tauglichkeit und Bestimmung herabgesetzt wird, einzelne der abgebildeten Komponenten durch gleich- oder höherwertige zu ersetzen, so dass das Fahrrad entsprechend abweichend ausgeliefert wird. Der Einsatz anderer Komponenten ist derzeit im Wesentlichen den Lieferproblemen und – ausfällen aufgrund der Corona-Pandemie geschuldet.
